The Production Line

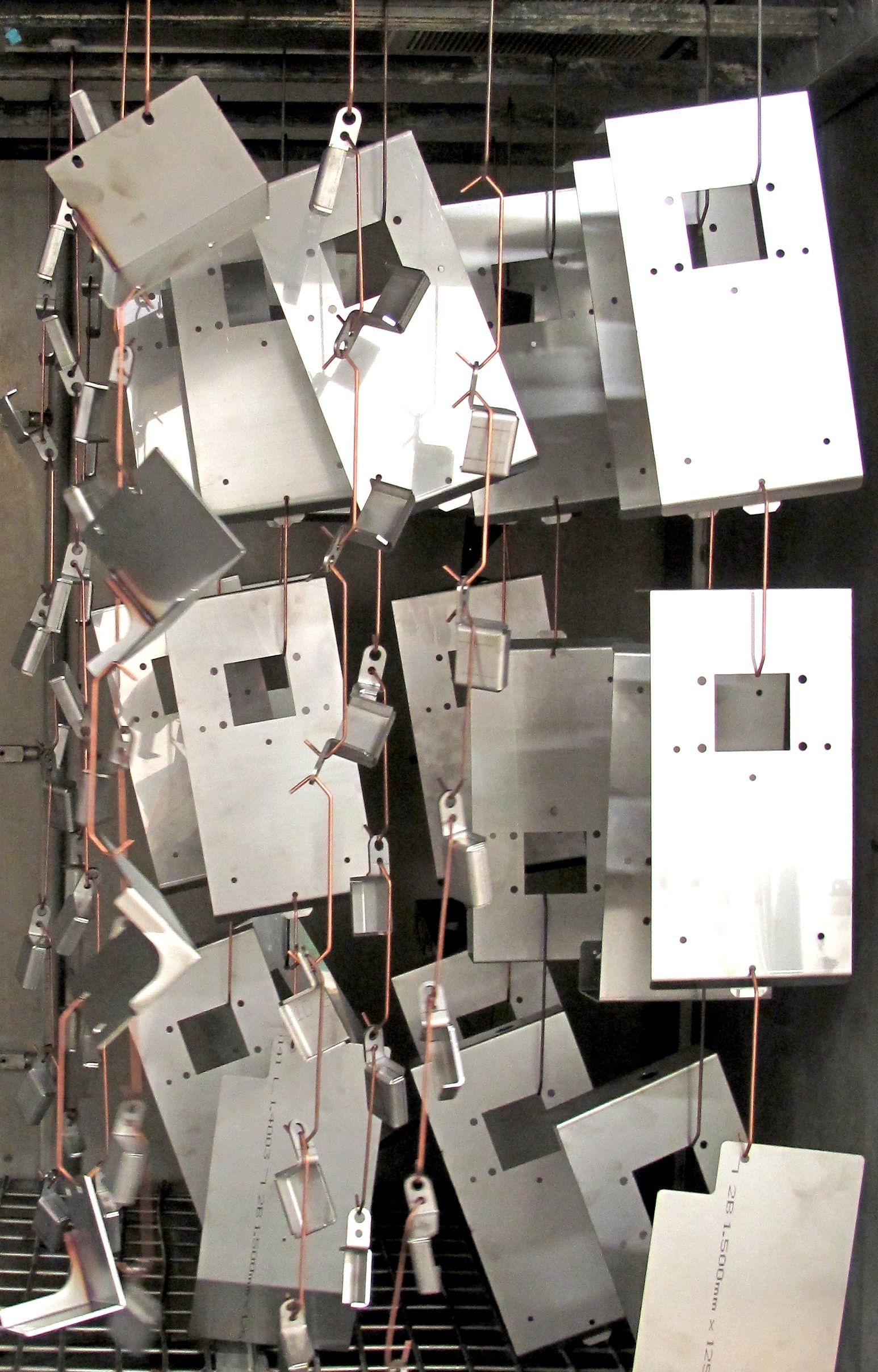

Cut using our 12kw ByStar fibre cutting system, these components are a regular feature on our production line.

After bending, being made hand-safe, having the poly-coating removed & cleaned they will be used in industrial sites to mount beacons and speakers in hazardous areas.

This carcass, which will be used on an industrial tow tractor involved a range of mild steel from 3mm to 25mm thick.

The ongoing fabrications are set to be built in relatively small batches and, as this initial sample shows - involve a range of complex processes including detailed and high spec welding.

Our highly skilled staff are able to turn orders around to specification quickly. This product is manufactured in-house at our 30,000 sq ft Nottingham facility. The product will arrive on-site in good time, ready for installation.

This substantial steel fabrication forms the carcass of an electric tow-tractor that is capable of pulling up to 25-tonnes over long distances.

We worked closely with the customer's design team on this project. This included creating jigs and measuring gauges to assist with welding, assembly and final inspection - all resulting in efficient fabrication and the perfect fit.

The overall process involved drilling, tapping, countersinking, rolling, bending, step-bending various inserts, fixtures and fittings and of course, welding.

This semi-assembled low voltage distribution cabinet forms part of an ongoing contract we have been working on.

The fabrication of this cabinet involved multiple processes. This included laser cutting, bending and inserting smaller fabricated parts.

As it is being used for an outdoor application, we powder coat it for protection from the elements.

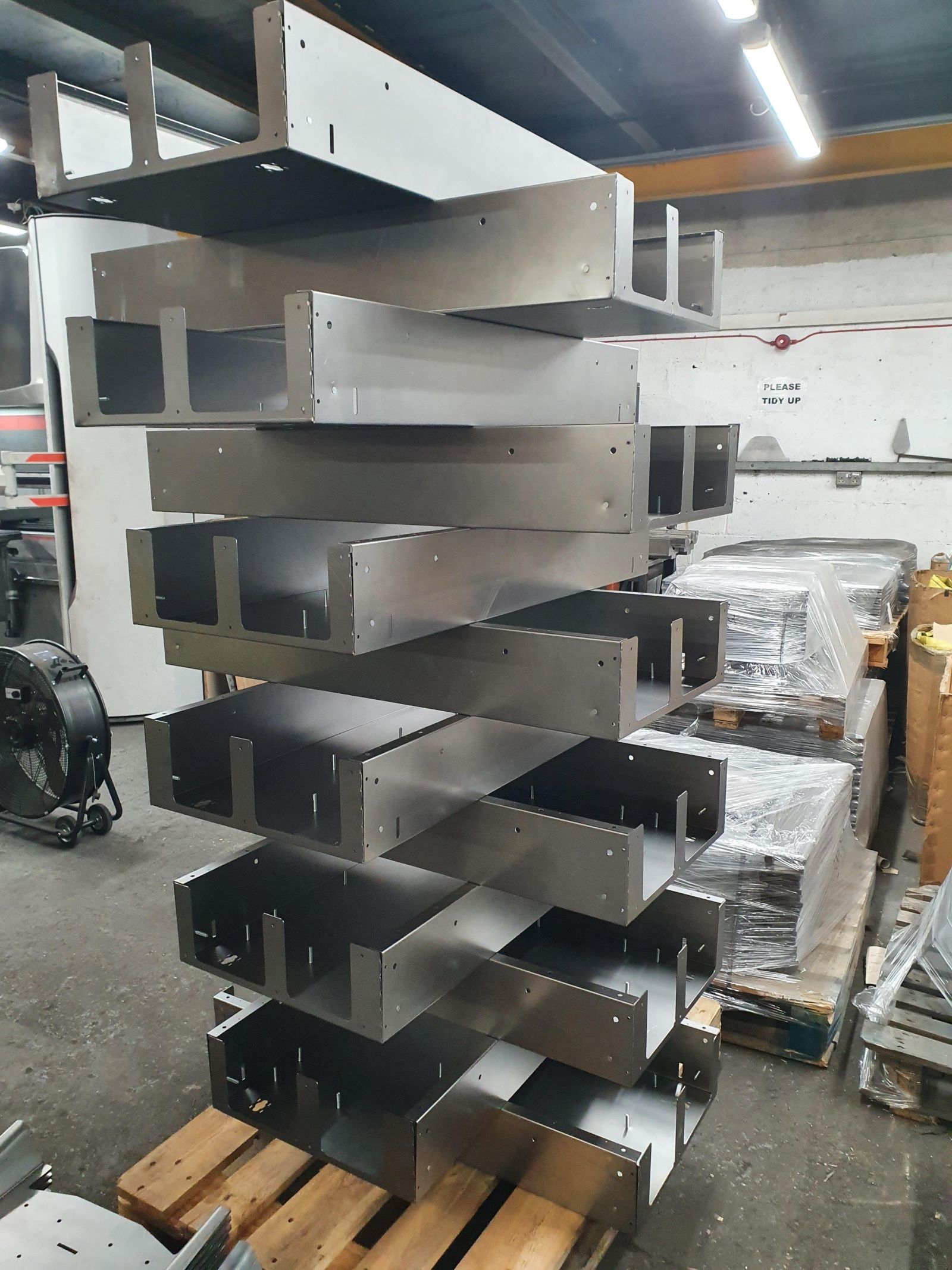

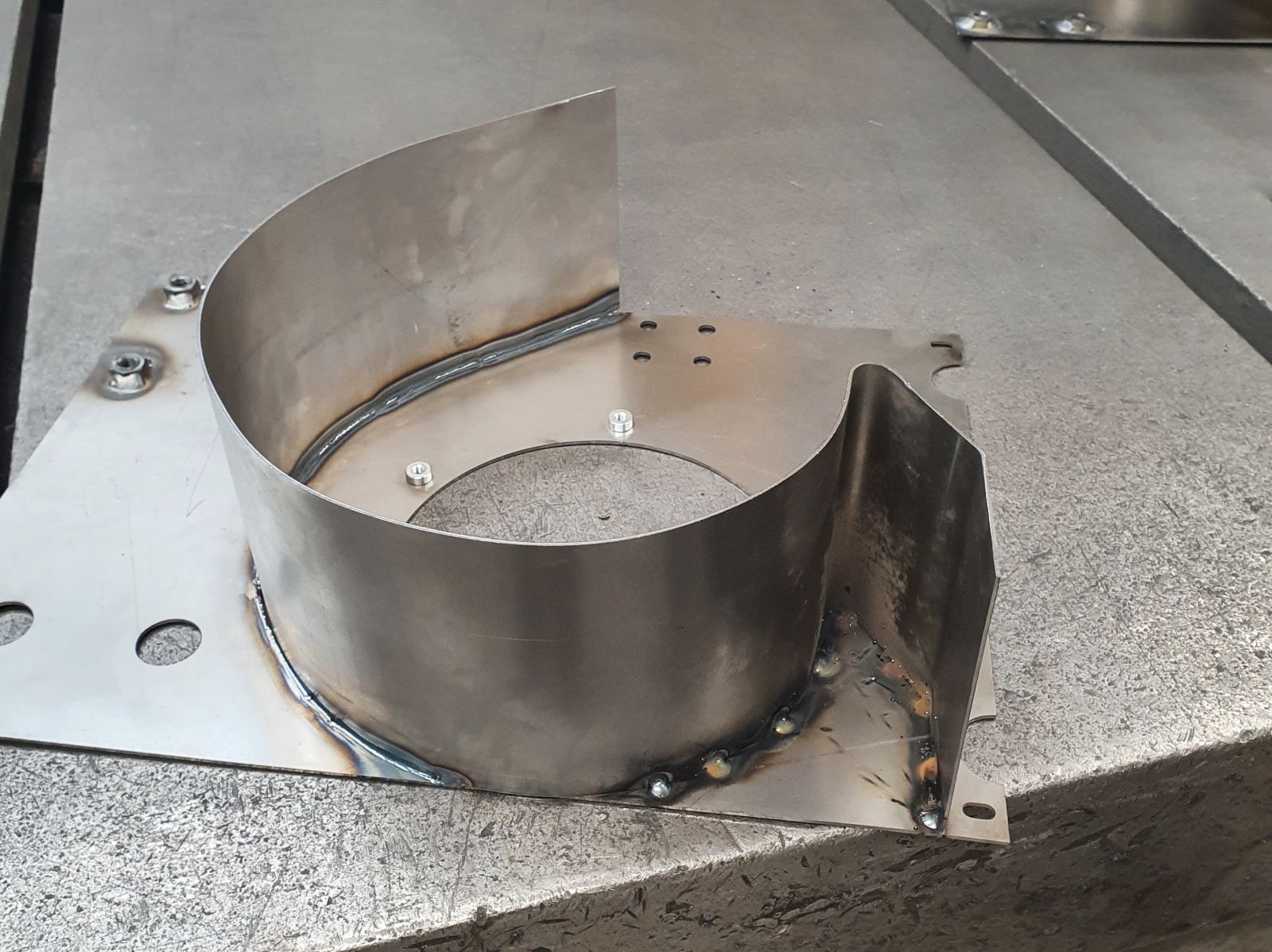

These parts also make up part of the high-end wood burning stoves that we manufacture for a well known and reputable supplier.

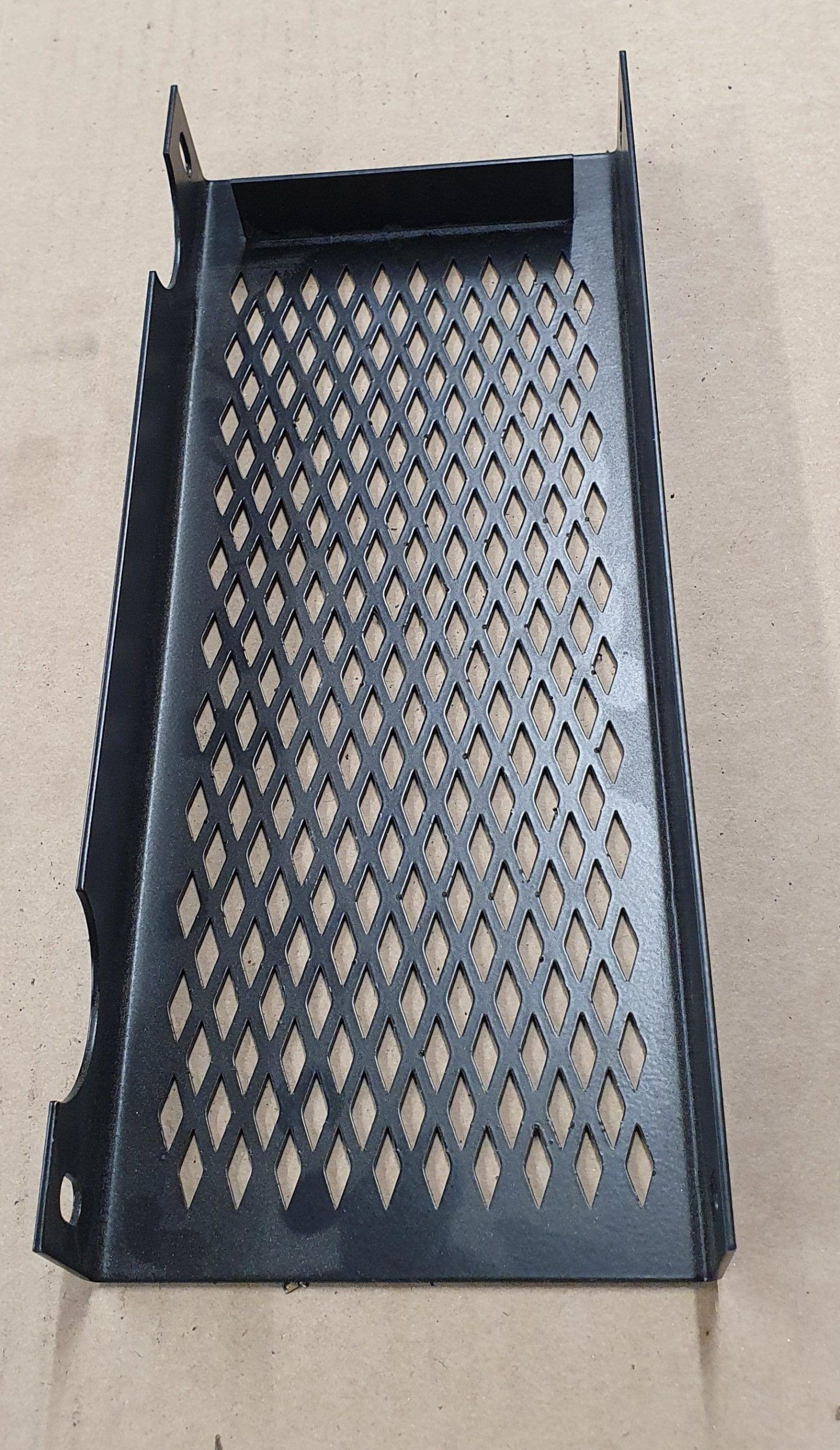

The image reflects the detail and precision with which the machine cuts. Efficiency such as this ensures that we can limit waste and it’s another reason that we like to continually invest in our machinery.

The style of cutting we do is broad and is as varied as our customer base.

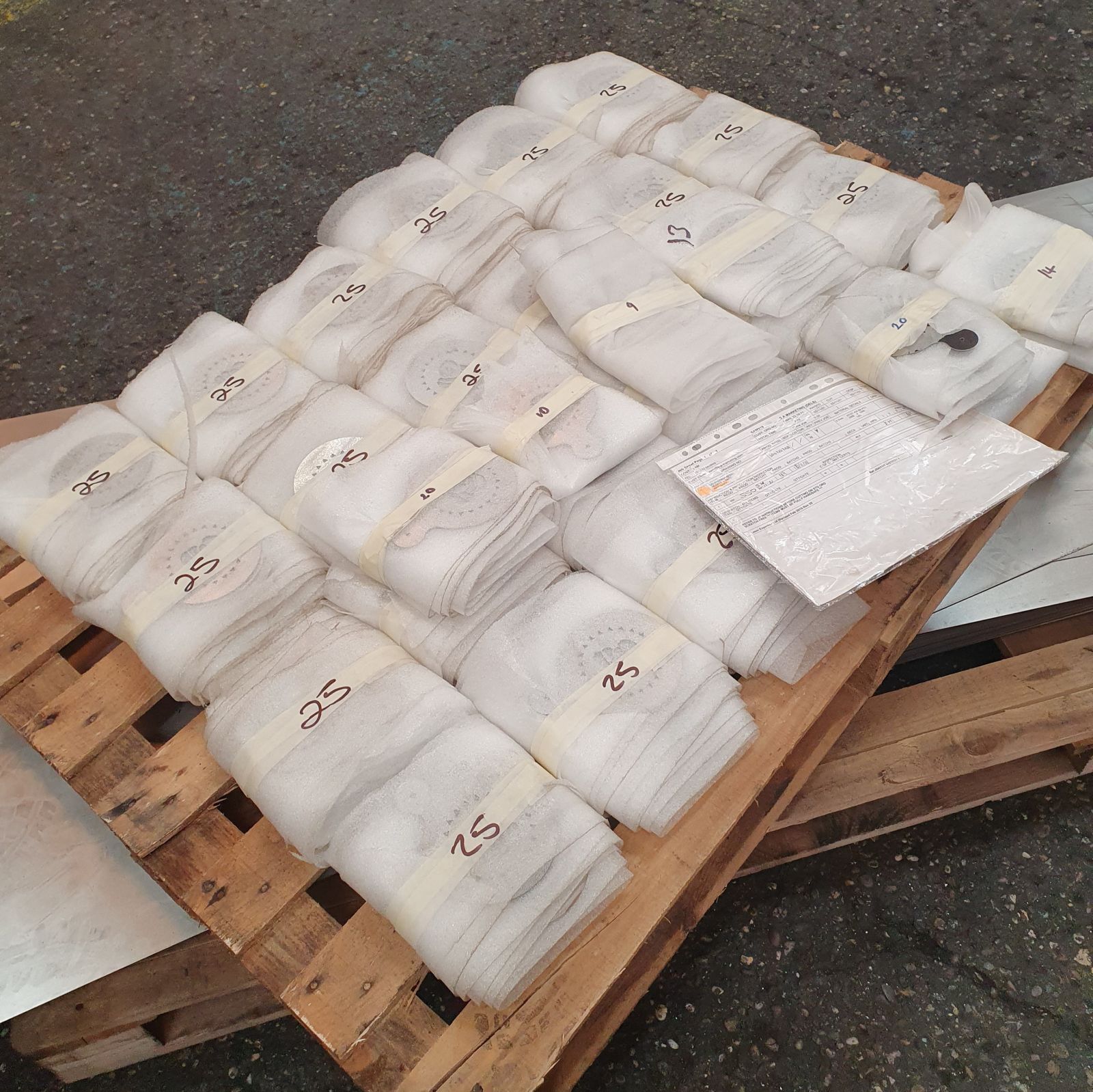

The way your finished product arrives with you is every bit as important as the care and attention to detail we put into fabricating your order.

On these particular parts, the poly-coating will stay on the material throughout the cutting process. This serves to protect the brushed finish surface underneath.

We are well known for our speed and efficiency but that doesn’t mean that we compromise on quality.
